Product description
Expanded Metal Ceiling systems provide a unique combination of modern architectural style, structural strength, and practical functionality. Manufactured by slitting and stretching metal sheets into uniform mesh patterns, these ceilings create a visually striking open structure while maintaining excellent durability and load-bearing capacity.
Made from premium materials such as aluminum, galvanized steel, or stainless steel, expanded metal ceilings offer strong resistance to corrosion, impact, and long-term wear. The open mesh design allows for effective air circulation, natural light penetration, and easy integration with lighting, sprinklers, and ventilation systems. This makes them an ideal solution for contemporary buildings that require both performance and aesthetic value.
Expanded metal ceilings are widely used in airports, subway stations, commercial complexes, exhibition halls, office buildings, and industrial facilities. Their transparent yet protective structure can conceal overhead installations while still allowing convenient inspection and maintenance. Various mesh sizes, strand widths, panel dimensions, and surface finishes are available to match different architectural concepts.
The panels can be coated or painted in a wide range of colors, enhancing visual appeal and ensuring long-lasting surface protection. In addition, the lightweight structure simplifies transportation and installation, reducing labor costs and project timelines.
By combining design flexibility with mechanical strength, expanded metal ceiling systems deliver an efficient, economical, and stylish ceiling solution for modern construction projects. They are highly favored by architects and contractors looking for innovative materials that balance openness, safety, and performance.
Features
Expanded metal not only brings new, unique visual effects, but also has the following functional advantages:
● Fireproof. Aluminum and stainless steel expanded metal has natural fireproof property and complies with the Code of Practice for Fire Safety in Buildings.
● Beautiful & safe. During installation, certain gap should be left to house ventilation ducts, sprinkler systems and circuits, which not only provides a beautiful appearance, but also creates an air vent to ensure indoor security
●Flexible & versatile. The specification of the expanded metal can be tailored to achieve the optimum level of diffused lighting.
●Heat insulation. Excellent heat insinuation helps to reduce the cost of indoor air conditioning systems.
●Sound absorption. Good sound absorption helps to reduce the noise in the room.
●Easy to install and remove. Hang-in systems are used for installation, easy to install and remove and facilitate roof system maintenance.
Specification
Recommended Expanded Metal Ceiling Specifications | |||||||
Material | Thickness (mm) | Strand Width (mm) | SWD (mm) | LWD (mm) | Recommended Size1 | Recommended Size2 | Remarks |
Aluminum | 1.5, 2 | 2, 2.5 | 10 | 20 | 1000 × 2000 | 1200 × 2000 |
|
1.5, 2 | 2, 2.5 | 14 | 20 | 1000 × 2000 | 1200 × 2000 |
| |
1.5, 2 | 2, 2.5 | 12 | 25 | 1000 × 2000 | 1200 × 2000 |
| |
1.5, 2 | 2, 2.5, 3 | 15 | 30 | 1000 × 2000 | 1200 × 2000 | ||
1.5, 2 | 2.5, 3, 4 | 17 | 40 | 1000 × 2000 | 1200 × 2000 | ||
1.5, 2, 2.5, 3 | 4, 5 | 22 | 40 | 1000 × 2000 | 1200 × 2000 | ||
2, 2.5, 3 | 5, 6, 7 | 25 | 60 | 1000 × 2000 | 1200 × 2000 | ||
2, 2.5, 3 | 5, 6, 7 | 30 | 60 | 1000 × 2000 | 1200 × 2000 | ||
2, 2.5, 3 | 3.5, 4 | 16.5 | 60 | 1000 × 2000 | 1200 × 2000 | Hexagonal (knuckle about 20 mm) | |
Other sizes are available upon request. | |||||||
Installation

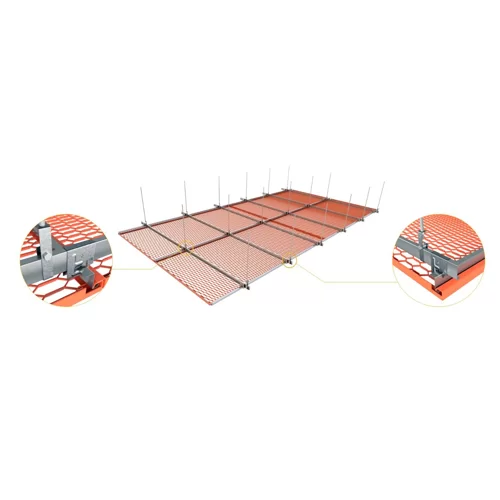

Our expanded metal ceiling adopts hook-on system. It not only achieves the design purpose of architects and designers, but also makes the installation easier and roof system maintenance easier.
